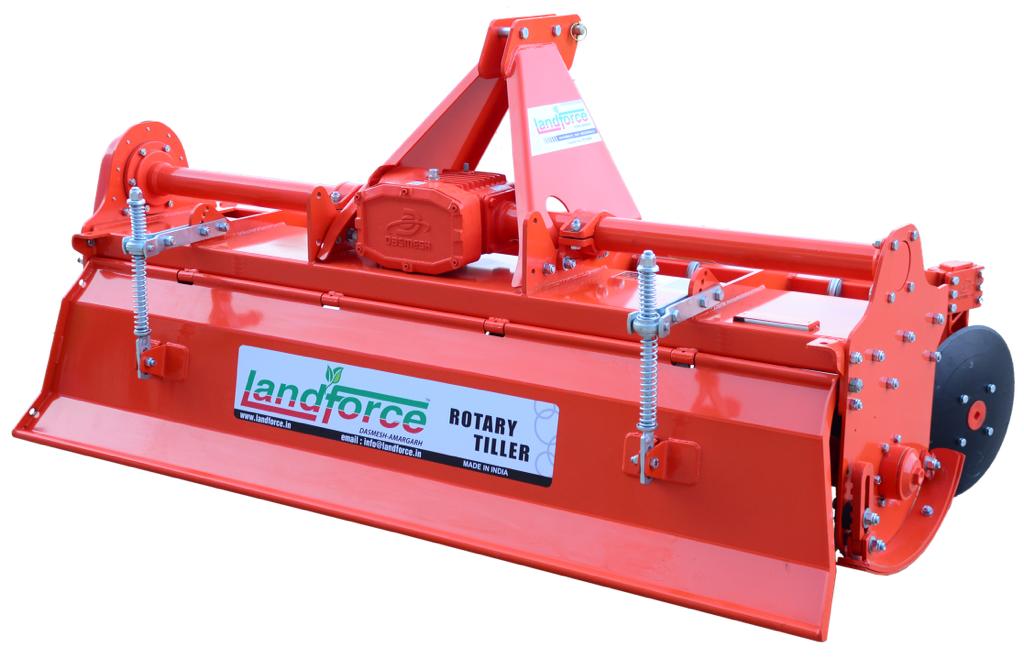

Rotary Tiller Heavy Duty

This category of rotary tiller is heavy duty and is recommended for tractors with high HP. It is suitable for very hard soil, rocky soil, black cotton soil and soil with heavy stubbles. It break up and mixes the hard top soil, uproots stubbles and prepare the land perfectly workable.

Product Benefits

Less Maintenance

Less Maintenance. High Quality blades. Less Diesel Consumption. Suitable for Hard Black Cotton Soil. Heavy Duty Frame.

Smooth And Quick Tilling

It allows for smooth and quick tilling of soil for a variety of crops. Leveller provided on the rear of the machine ensures perfect soil for cultivating the crops.

Long Lasting Performance

The thickness of the blade ensures a long lasting performance and reduces the cost of tilling per hectare.

Improves The Soil fertility

It improves the soil fertility because the fertilizers can be mixed easily and be removed of any weeds and crop residues.

Features

Side Drive

3 heavy duty gear drives running in a sealed oil unit to give constant lubrication during work and to ensure high performance even in prolonged and hard soil tillage.

Skid

The working depth can be adjusted by the height of the skids.

Hitch

The hitch is made from a shaped and welded triangular. This helps ensure longevity in all soils and conditions.

Side Disc

Suitable for Hard Soil.

Blades

Better Performance high quality blades

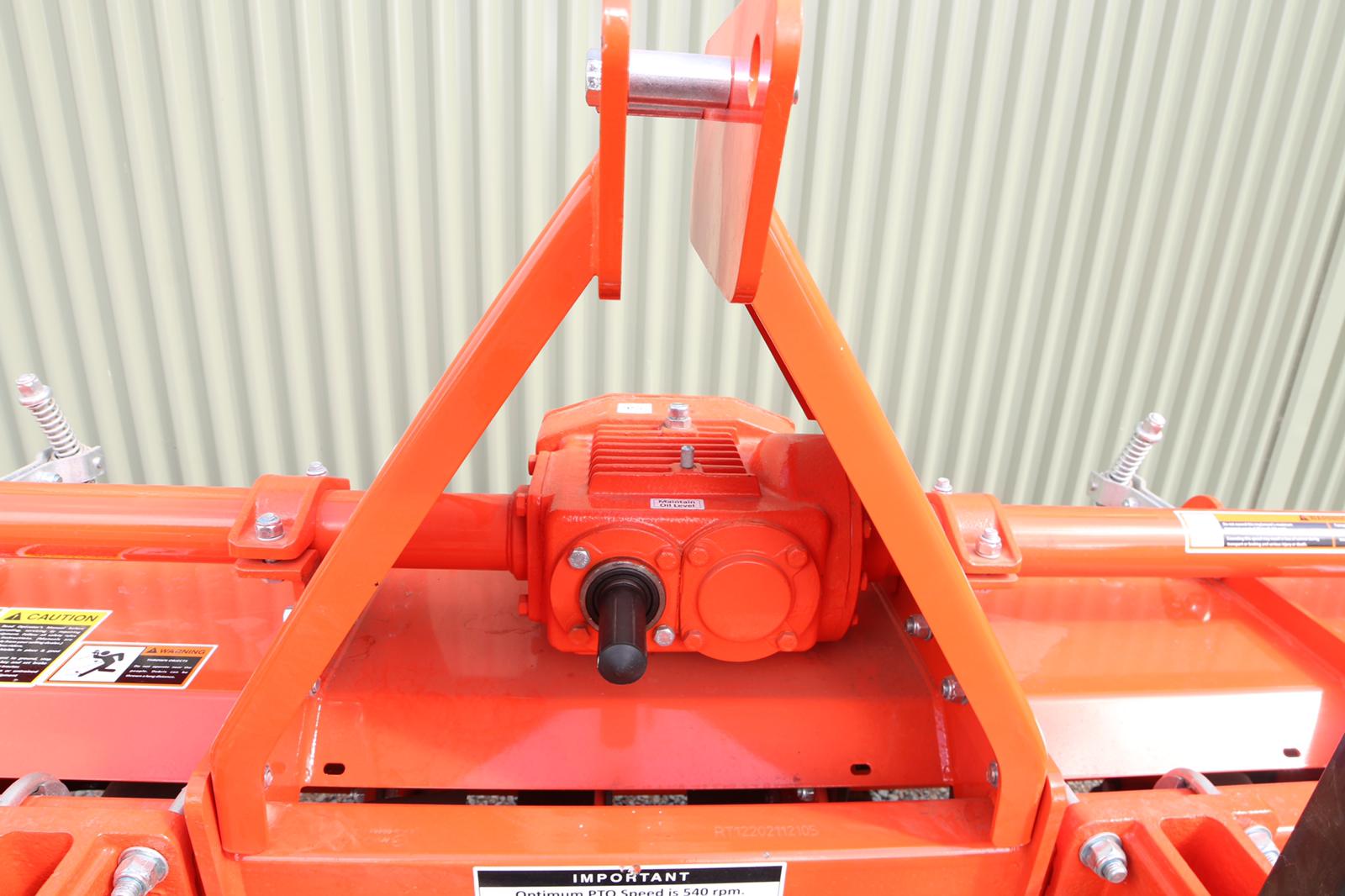

Gearbox

Heavy Duty Gear Box with less maintenance for long time performance.

Specifications

MODEL	RTH5MG36	RTH6MG42	RTH6MG48	RTH7MG48	RTH7MG54	RTH8MG54	RTH8MG60	RTH9MG66	RTH12MG84
SIZE (FEET)	5	6	6	7	7	8	8	9	12
OVERALL WIDTH (INCH)	72	79	79	89	89	98	98	112	152
WORKING WIDTH	60	68	68	77	77	88	88	101	140
WEIGHT (KG) APPROX. WITHOUT SIDE DISC	525	555	565	575	585	605	615	685	870
HITCH TYPE	CAT-II
MIN. HP REQUIRED	40	50	50	55	55	60	60	75	90
GEAR BOX	MULTI SPEED
SIDE TRANSMISSION	GEAR DRIVE
WORKING DEPTH MIN/MAX.	4 INCH - 6 INCH
NUMBER OF BLADES	36	42	48	48	54	54	60	66	84
PTO SPEED (RPM)	540/1000
WORKING DEPTH CONTROL	SKIDS FITTED AS STANDARD EQUIPMENT
ROTOR SPEED	180-220
