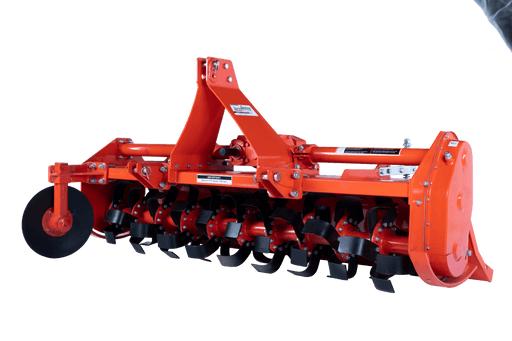

Supremo Series Tillers are designed to work under toughest soils to bear maximum load and benefits the user with minimum maintenance cost. The unique design is ideal for seed bed preparation to improve the soil health and supplements in retaining soil moisture and increases porosity.
Efficient engineering to supplement sturdy construction compatible with leading Tractor OEMs.
Ideal machine for seed bed preparation to retain soil moisture & increase porosity.
Designed to work under toughest soils and ability to bear maximum load.
Side Drive
3 heavy duty gear drives running in a sealed oil unit to give constant lubrication during work and to ensure high performance even in prolonged and hard soil tillage.
Skid
The working depth can be adjusted by the height of the skids.
Hitch
The hitch is made from a shaped and welded triangular. This helps ensure longevity in all soils and conditions.
Side Disc
Suitable for Hard Soil.

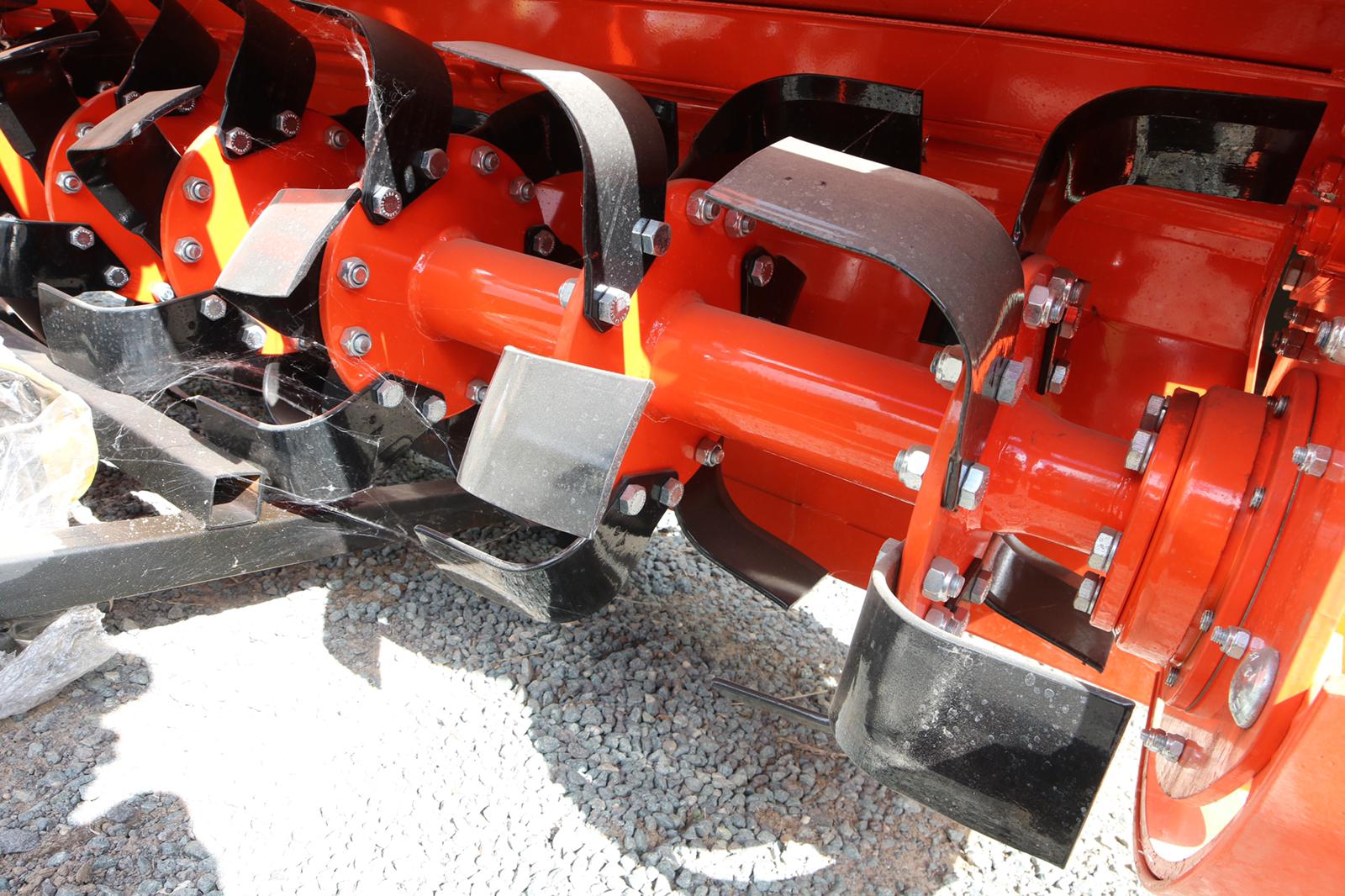

Blades
Better Performance high quality blades
Gearbox
Heavy Duty Gear Box with less maintenance for long time performance.
CHARACTERISTICS | 4 FEET | 5 FEET | 6 FEET | 7 FEET | 8 FEET |
OVERALL LENGTH (MM) | 1520 | 1800 | 1950 | 2200 | 2440 |
OVERALL WIDTH (MM) | 1020 | ||||
OVERALL HEIGHT (MM) | 1050 | ||||
WORKING WIDTH (MM) | 1220 | 1500 | 1670 | 1930 | 2160 |
TRACTOR HP | 25 | 30 | 35 | 40 | 45 |
HITCH CATEGORY | CAT II | ||||
NO. OF BLADES L/C TYPE (80 x 7) | 30 | 36 | 42 | 48 | 54 |
NO. OF BLADES L/C TYPE (40 x 7) | 42 | 48 | 54 | 54 | 66 |
NO. OF BLADES J TYPE | 60 | 66 | 72 | 78 | 84 |
GEAR BOX TYPE | MULTI | SINGLE / MULTI | SINGLE/ MULTI | MULTI | MULTI |
SIDE TRANSMISSION TYPE | GEAR DRIVE | ||||
MAX WORKING DEPTH | 150 MM | ||||
ROTOR DIAMETER WITH BLADES | 430 | ||||
PTO SAFETY DEVICE | SHEAR BOLT TYPE | ||||
PTO | 540/1000 | ||||
WEIGHT (KG.) | 355/360/375 | 380/385/400 | 405/410/425 | 425/430/445 | 450/455/470 |
