Agroking Trailers are used for the transportation of agriculture produces, farming remainders, residues or weeds from one place to another. Heavy Duty Structure using finest quality of raw material and Robust Design, results in Low Maintenance Cost and Long Life. Good Quality Paint is used that s

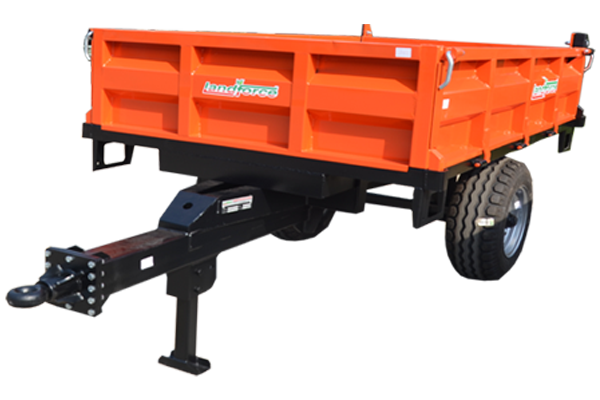

Landforce Trailers are used for the transportation of agriculture produces, farming remainders, residues or weeds from one place to another.
MODEL | TRAM 2 | TRAM 5 |
OUTER DIMENSIONS (L x W x H IN FEET) | 8 X 4.6 X 1.5 | 10.5 X 6.5 X 1.5 |
MAIN CHASSIS HEAVY CHANNEL | 125 X 65 MM | 125 X 65 MM |
FLOOR SHEET THICKNESS | 3 MM | |
SIDE WALL THICKNESS | 1.6 MM (CORRUGATED) | |
TYRE | 10.0/75-15.3-14PR (BKT) TUBELESS | |
HYD. CYLINDER | TELESCOPIC 2 STAGE (5 TON) | TELESCOPIC 2 STAGE (10 TON) |
FRONT HOOK | RING TYPE 50 MM DIAMETER | |
HUB BEARING | TAPER ROLLER 32210 INNER & 32208 OUTER | |
WEIGHT (KG.) APPROX. | 750 | 990 |
HP REQ. | 40-50 | 50-70 |
BREAK | N/A0 | HYD. BREAK PROVIDED |
