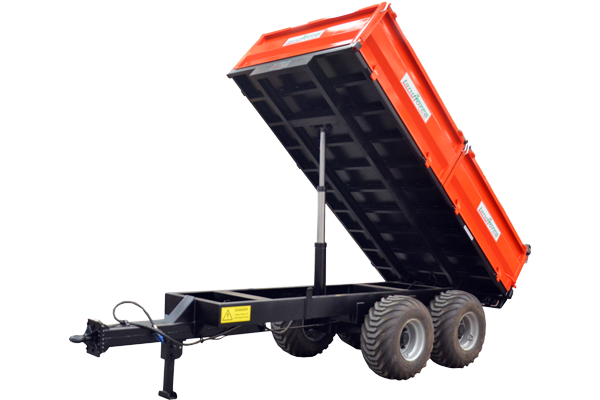

Tipping Trailer-Tandem Axle

Tipping Trailer-Tandem Axle

Agroking Trailers are used for the transportation of agriculture produces, farming remainders, residues or weeds from one place to another. Heavy Duty Structure using finest quality of raw material and Robust Design, results in Low Maintenance Cost and Long Life. Good Quality Paint is used that sa

Product Benefits

Agroking Trailers are used for the transportation of agriculture produces, farming remainders, residues or weeds from one place to another.

Specifications

MODEL

TRC 6

TRC 9

OUTER DIMENSION (LXWXH IN FEET)

11 x 6 x 2

12 x 6 x 1.75

MAIN CHASSIS HEAVY CHANNEL

125 x 75 MM

200 x 75 MM

SUPPORT CHANNEL

                                                                                                           75 x 40 MM

FLOOR PLATFORM THICKNESS

4 MM

4 MM

SIDE WALLS THICKNESS

3 MM

3 MM

FRONT SIDE

FIXED BY BOLT AND NUTS AND REMOVABLE

LEFT, RIGHT AND REAR SIDE

ALL SIDES ARE DROP DOWN AND REMOVABLE

WHEEL RIM

HEAVY DUTY

TYRES

400 / 60-15.5

PAINTING

PU PAINT

HYDRAULIC JACK

10 TONS CAPACITY HEAVY DUTY DOUBLE STAGE TIPPING RAM

                                                                                                         15 TONS CAPACITY HEAVY DUTY DOUBLE STAGE TIPPING RAM

AXLE

   75 MM SQUARE

                                                 90 MM SQUARE

AXLE BEARING

32214 INNER & 32211 OUTER

     32217 INNER & 32211 OUTER

HUB

SGI CASTING CNC MACHINED

WEIGHT IN KG (APPROX.)

1850

    2110

OPTIONAL

BREAK DRUM & LEAF SPRING
